Additional information

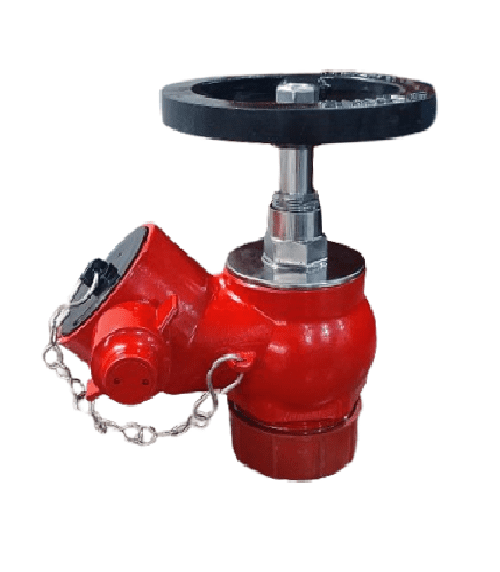

| Type | Single Headed Oblique Type Landing Valve |
|---|---|
| Body | Stainless Steel IS:3444 Grade 1 and Grade 4 |
| Hand Wheel | Cast Iron IS : 210 |
| Inlet | 75/ 80mm NB Flanged Inlet |
| Outlet | 63mm Instantaneous coupling with Quick Release Lugs |
| Material | Stainless Steel |
| Size | 63mm / 2.5 inch |
| Performance Test | Hydrostatic Test (Body Test): Tested at 21 Kgf/cm² |
| Flange Drilling | 75 NB 3" (OD -200mm, PCD – 160mm, 4 Holes 19mm) or ANSI B 16.5 150# |
