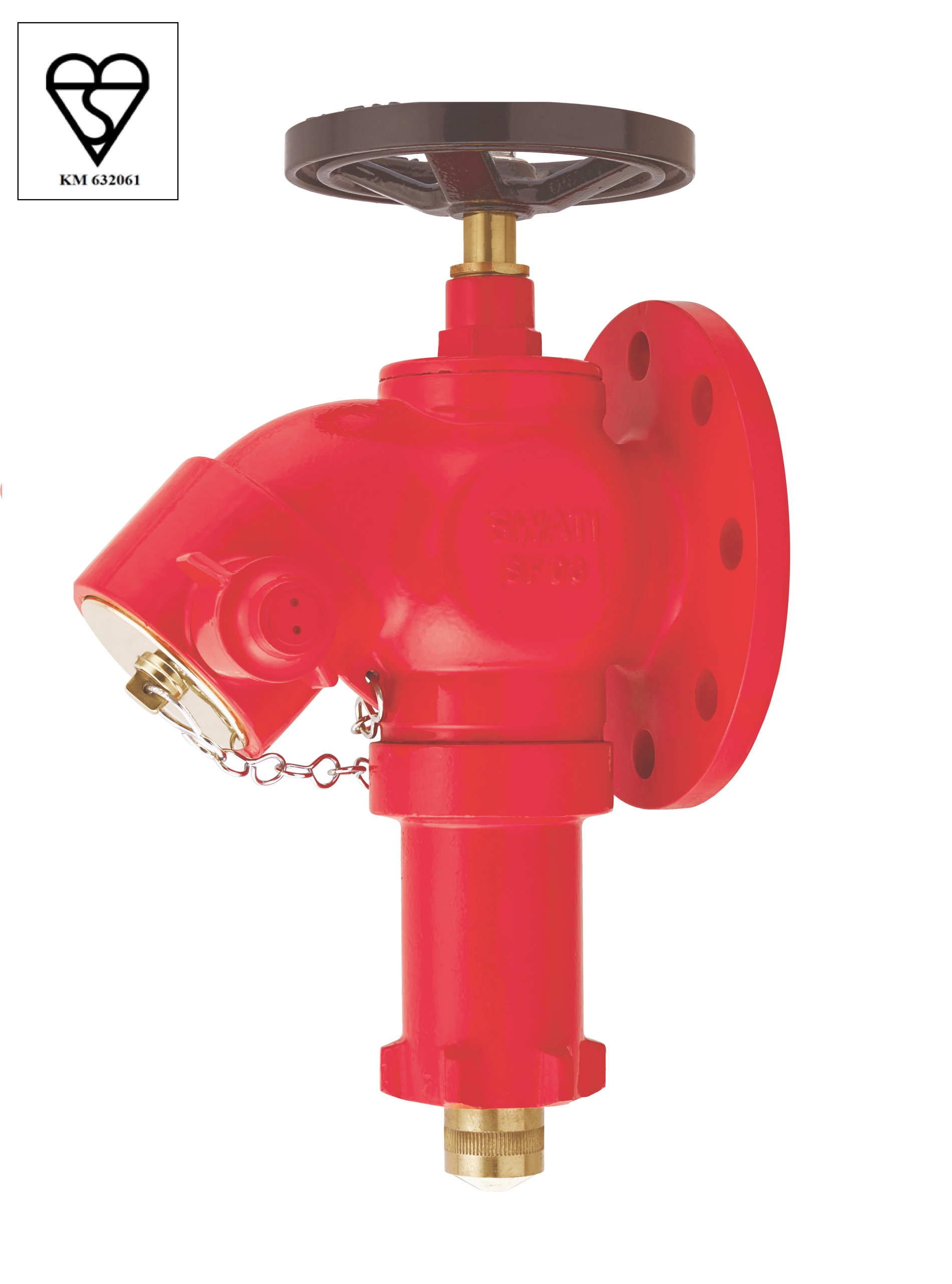

Additional information
| Body | Copper Alloy to BS 1400 LG 2 |
|---|---|
| Hand Wheel | Grey Cast Iron to BS EN 1561 |
| Inlet | Flanged |
| Outlet | Female Instantaneous to BS 336:2010 |
| Working Pressure | 20 Bar Max |
| Pressure Rating | High Pressure Valve |
| Nominal Size | DN 65 |
| Seat Test Pressure | 22.5 Bar |
| Body Test Pressure | 30 Bar |
| Flange Drilling | BS 4504 Part 2:1974 |
| Min. Water Flow Rate | 8.5 L/S @ 4 Bar Outlet Pressure |
| Min. Valve Pressure Regulating | 4 to 12 Bar |
